How To Install A Wi-Fi Card.

Desktop WiFi playing cards principally are available one in every of two forms – USB or PCIe. USB WiFi adapters are extraordinarily easy; merely plug them right into a USB port and also you’re good.

PCIe wi-fi adapters go into the PCIe slots in your motherboard (usually the PCIe x1 slot on the backside). Installing these takes a bit more effort.

After bodily putting in the WiFi card, you’ll have to set up the drivers earlier than you can begin using it. I’ll information you thru this complete course of on this article.

Picking a WiFi Card

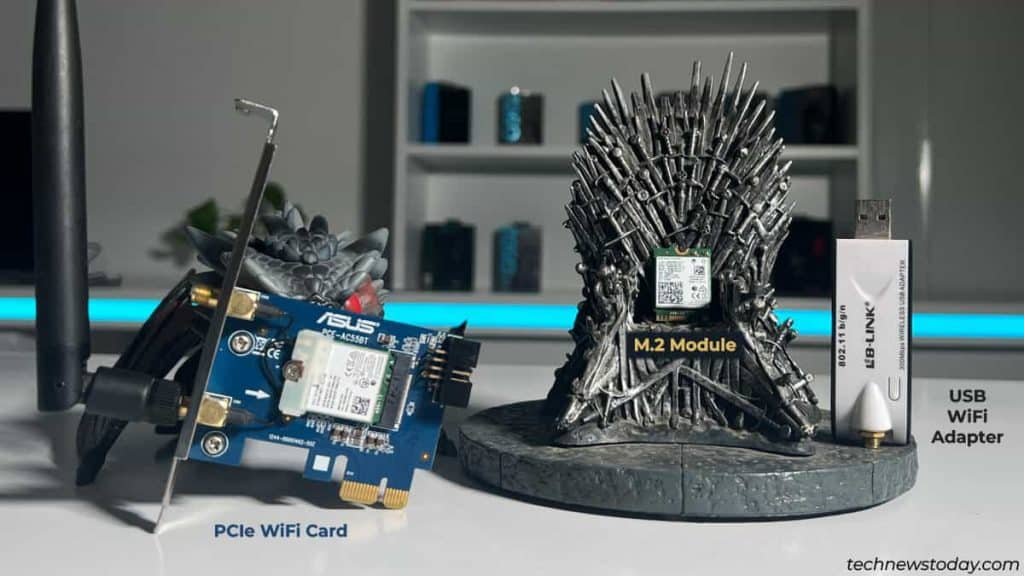

wifi card pcie usb m2

This part is for individuals who haven’t bought a WiFi card but. You’ll discover three whole forms of wi-fi adapters available in the market – USB, PCIe, and M.2.

USB wi-fi adapters are the commonest today. They’re transportable, simple to make use of, and work on all desktops and laptops.

M.2 modules are principally bought to be used on laptops. These have keying notches within the E and A positions.

PCIe playing cards are simply M.2 modules put in on a PCIe adapter. This is finished to make them suitable with most desktop motherboards.

When choosing a WiFi card, you should take into consideration compatibility and efficiency. The key issues to bear in mind are:

  • USB adapters are suitable with just about all PCs. They’re additionally super-affordable however the lower-end ones are typically unreliable.
  • M.2 modules are meant for laptops. Before buying them for a desktop, guarantee your motherboard has a suitable M.2 slot. Otherwise, you’ll want an M.2 adapter.
  • For PCIe adapters, guarantee you’ve no less than one PCIe slot free and never bodily blocked by the GPU.
  • Performance principally relies on the adapter’s worth vary and high quality quite than the adapter sort (efficiency refers to max supported connection velocity, connection vary, high quality, and stability).
  • I like to recommend going for a product no less than mid-range with good opinions. And if you need the very best wi-fi efficiency on desktops, high-end PCIe playing cards are the best way to go.

Installing PCIe WiFi Card on Desktops

Prepare the PCIe Slot

  1. Turn off the PC and disconnect the ability cable.
  2. Remove the facet panel. Depending on the case, you could possibly swing the door open, unscrew the panel, or slide it off.
  3. Locate the PCIe x1 slot. You can use different free PCIe slots if you need however most individuals want these for different enlargement playing cards like GPUs.pciex1-slot-on-motherboard

If there’s one other card already put in, you’ll need to take away it first.

  1. Unlock the PCIe slot’s latch (if current).
  2. Remove the screw holding the cardboard in place.wifi-card-bracket-screw
  3. If there’s an extension twine connecting the cardboard to the motherboard, unplug it.
  4. Gently pull the cardboard straight out of the PCIe slot.remove-pcie-wifi-adapter

Install the WiFi Card

  1. If there’s a metallic bracket adjoining to the PCIe slot you’re about to make use of, take away it. Some covers can unscrewed, whereas others have to be completely popped off with a little bit of drive.remove-pcie-metal-bracket
  2. Align the WiFi card in order that the PCIe connector aligns with the PCIe slot and the antenna connectors come out of the case.align-wifi-card-to-pcie-slot
  3. Gently push the cardboard straight into the slot. If the slot has a latch, it ought to mechanically lock when the cardboard is all the best way in.insert-wifi-card-in-pcie-slot
  4. Install the screw to correctly maintain the cardboard in place.screw-in-wifi-card
  5. If the cardboard additionally has an extension twine for the Bluetooth module, join one finish to the cardboard. Then, join the opposite finish to the USB header on the motherboard.wifi-card-bluetooth-connector
  6. Finally, align the antennas to the connectors and switch them in a clockwise path to attach them.install-wifi-card-antenna

Install WiFi Driver

If you’ve an current web connection (like Ethernet), Windows could detect the brand new WiFi card and mechanically set up drivers for it.

Otherwise, you’ll have to manually set up the drivers. To do that,

  1. Download the motive force recordsdata from the official supply.asus-wifi-card-driver-download
  2. Then, launch the setup wizard.wifi-card-driver-setup-wizard

If required, use one other device with web entry for this. Or, share your telephone’s connection by way of tethering. Once you put in the drivers, your WiFi card must be practical.

Installing a M.2 WiFi Card on Desktops

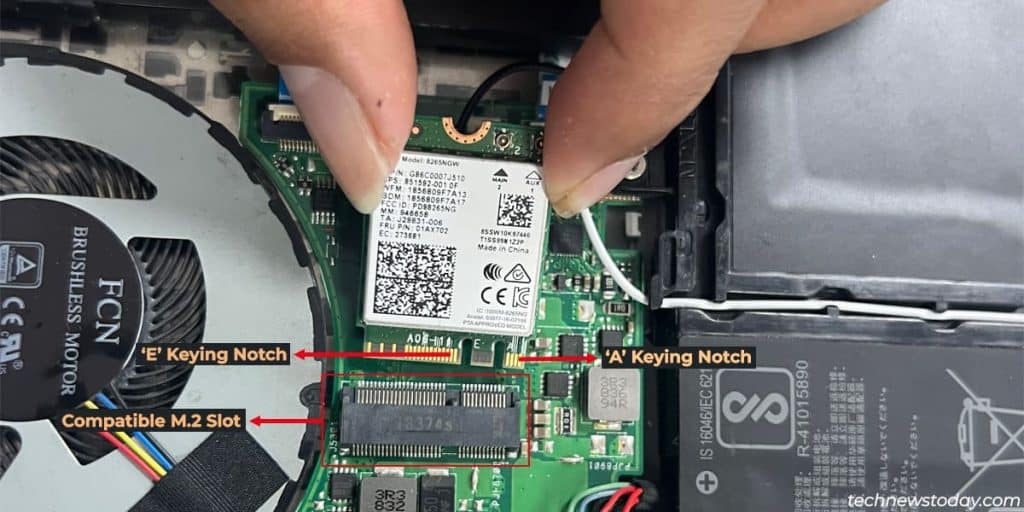

m.2 wifi card keying notches

If your board has an M.2 slot with E and A keying notches, all it is advisable do is slide the module into the slot. Remember to do that whereas the system is powered off.

But most desktop motherboards don’t have such a slot. Instead, they’ve M.2 slots with M and B keying notches (for SSDs). In such circumstances, you’ll want an applicable M.2 adapter.

Finally, it’s additionally potential to switch the module on motherboards with built-in WiFi assist. To do that,

  1. Locate the WiFi module on the I/O panel. It must be vertically mounted.
  2. Flip the motherboard round. You’ll discover the screws holding the module in place instantly on the alternative facet.
  3. Once you take away these screws, the module ought to come out simply.
  4. Connect the brand new module to the identical M.2 slot. Then, flip the board round and correctly screw it in place.

Note: After bodily putting in the module, set up the suitable drivers with steps from the Install WiFi Driver part.

Installing a USB WiFi Adapter

usb wifi adapter connected to mobo

Using a USB WiFi card is so simple as it will get. Connect it to a USB port. Then, observe the steps from the Install WiFi Driver part above. Once that’s executed, your PC ought to have WiFi.

How to Replace a Laptop’s WiFi Card

Some laptops have WiFi playing cards instantly soldered to the motherboard. In such circumstances, you’re out of luck.

But if the WiFi module is a detachable one, you’ll be able to observe these steps to switch it:

  1. Check your proprietor’s handbook for the steps to take away the back cowl (because it differs from laptop computer to laptop computer). But usually, you take away the screws and the battery (if required). Then, you pry open the back cowl.pry-open-laptop-back-cover
  2. Locate the previous WiFi card on the laptop computer’s motherboard.laptop-wifi-adapter
  3. Note which coloured antenna wire is hooked up to which factors on the WiFi card. They must be numbered or color-coded.laptop-wifi-adapter-antennas
  4. Use a tweezer or your fingers to softly detach the wires. They ought to come off with little or no effort.detach-m2-wifi-adapter-antenna
  5. Remove the screw holding the cardboard in place.unscrew-m2-wifi-card
  6. Now, pull the cardboard out of the M.2 slot.remove-m2-wifi-card-laptop
  7. Now, reverse the steps to put in the brand new WiFi card. First, set up it into the M.2 slot.
  8. Then, screw it in place and connect the wires. The wires ought to join fairly simply.connect-m2-wifi-card-antenna
  9. Put the quilt back on and set up all of the screws correctly.
  10. Finally, flip in your laptop computer. Use the steps from the Install WiFi Driver part to get your new WiFi card working.
