Does Your GPU Keep Crashing? Here’s How To Fix It

Does Your GPU Keep Crashing? Here’s How To Fix It.

If your GPU retains crashing, the underlying problem may very well be a failing energy provide or a graphics card.

First, rule out each problem with connectivity, energy insufficiency, and broken cables/slots. Also, be certain that the GPU isn’t overheating, and the BIOS / VBIOS / drivers are up-to-date.

Although graphics playing cards can stay for greater than 5 years (on common), they begin failing early because of heavy utilization and excessive temperatures.

The identical is the case with low-tier PSUs and motherboards (if the PCIe slots are broken).

I’ll talk about each potential resolution to make the GPU work once more. But if it retains crashing, the ultimate choice is to name the seller for RMA (Return Merchandise Authorization).

Rule Out Beginner’s Mistakes

So, let’s start the troubleshooting with some primary connection and compatibility checks.

Firstly, guarantee every cable is securely related. I’m referring to the show, PCIe, and even the PSU wire

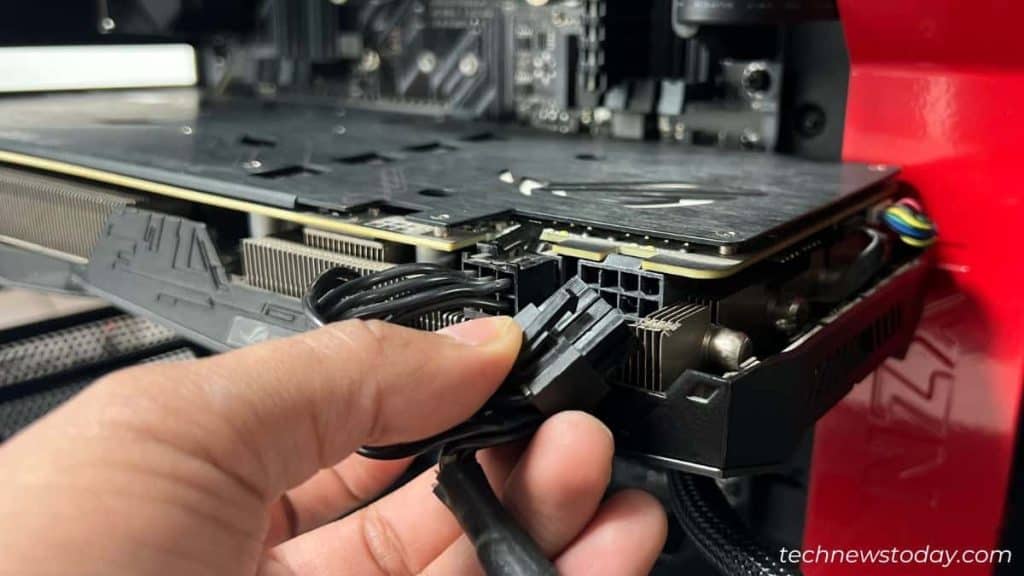

make sure pcie cable is properly connected
Securely join the PCIe cable

Make certain the PC’s energy cable is straight plugged into the wall outlet. Try a special one in the event you assume it’s defective or isn’t offering adequate energy.

Another purpose for the GPU to show off immediately is that the comparatively heavy weight of the graphics card might have ripped it out of the motherboard slot.

Reconnect the graphics card to the motherboard. This time, ensure you tighten it using an applicable screw in order that the GPU rests correctly and doesn’t sag.

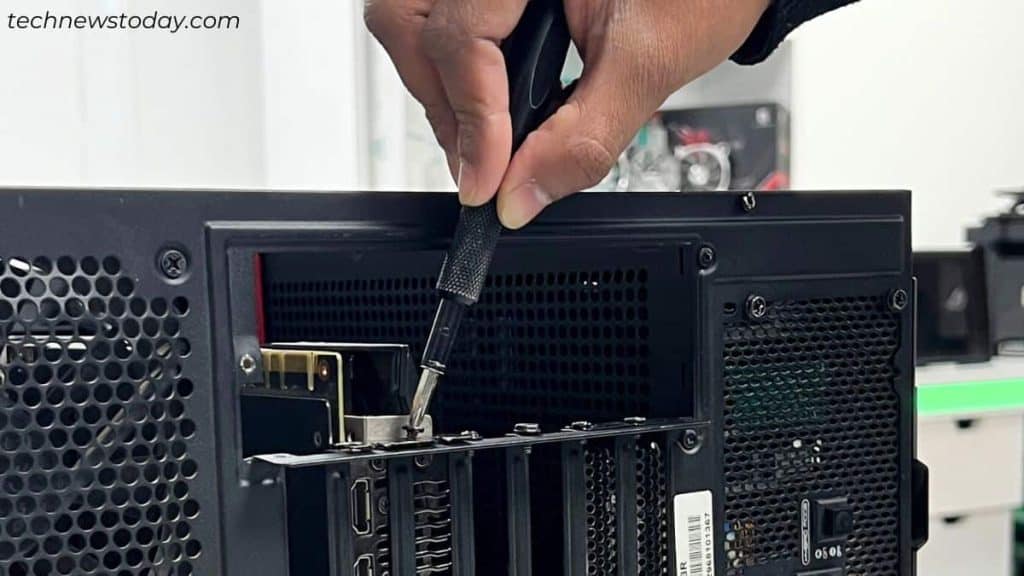

tighten the graphics card with a screw
Secure graphics card with a screw

Is your graphics card and the opposite PC elements receiving adequate energy? Check the wattage score of every element.

I usually make the most of PC Part Picker to do that job. In case the PSU can’t provide sufficient energy, you’ll must change it.

Even although your PC will POST usually, the graphics card and even the facility provide can flip off when it’s beneath excessive load (particularly when enjoying video games). That’s as a result of the PSU is unable to produce adequate energy the GPU seeks.

Some graphics playing cards include two or three energy sockets. Always use a separate PCIe cable for every port.

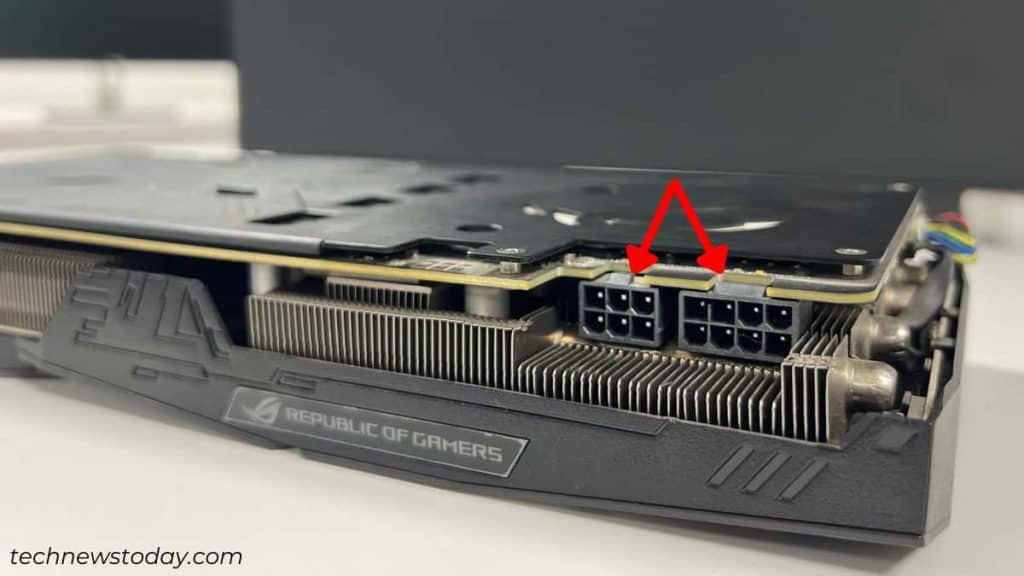

dual graphics card port
Two energy ports on GEFORCE GTX 1080

Daisy-chaining the PCIe cables is ok for low-end graphics playing cards (that eat lower than 150 W). However, it received’t be adequate for these GPUs that function on increased wattage.

Fix Overheating Problem

Like the CPU, the graphical processor unit is one other element that generates essentially the most warmth. The more the utilization, the upper the temperature and in addition increased the possibility of failing.

When the GPU temperature exceeds the edge, you’ll expertise thermal throttling. And if it overheats an excessive amount of, the GPU will flip off to stop itself from getting broken.

In that case, listed here are some potential methods to decrease its temperature:

Examine Whether Graphics Card Is At Fault

As acknowledged to start with, the symptom you’re seeing is probably going leaning towards a failing GPU. But let’s not conclude that simply but – the faults may very well be with the PCIe cable(s) or the related slot.

Here are some fast methods to confirm whether or not the graphics card is defective. Proceed with anybody that’s possible for you:

  • Use a spare GPU: If your PC randomly crashes, there’s a difficulty with one other element aside from the first graphics card.
  • Use the graphics card on a working pc: If it doesn’t flip off right here, your GPU is totally effective. Again, you’ll want to examine your main PC’s slots/cables/different elements.
  • Boot Using Integrated Graphics: If your CPU helps iGPU, take away the graphics card and use the motherboard’s video port. Same drawback? It’s very seemingly that your motherboard or PSU goes unhealthy.

For customers whose GPU is defective, the one resolution is a alternative. That’s the explanation the crashes you’re experiencing are so random – they will occur when the GPU is beneath load and even when the PC is idle.

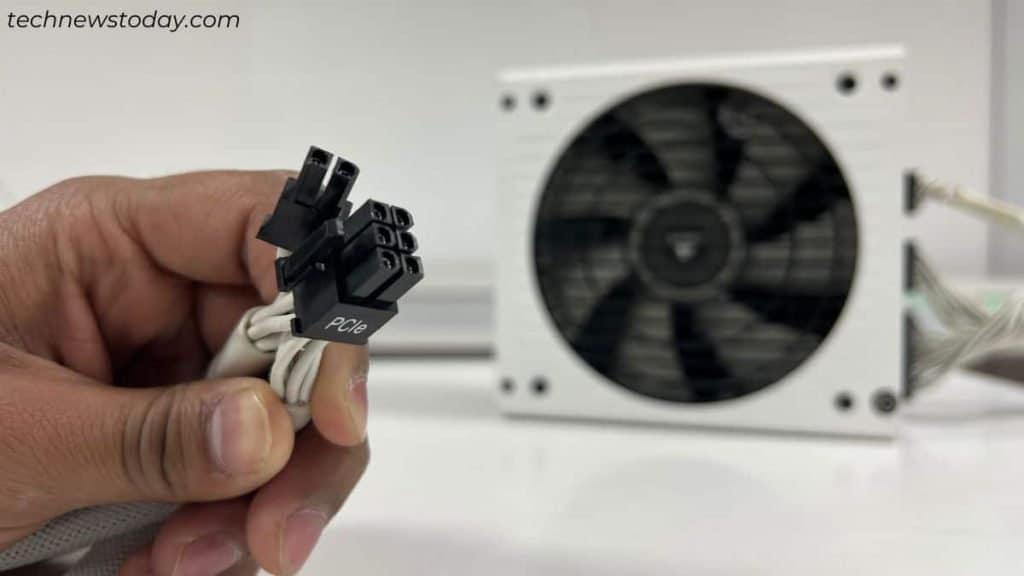

inspect pcie cable for damage

But if it’s not the graphics card, attempt wiggling the cable a little bit bit the subsequent time your PC is operating easily. If you may recreate the identical problem, know that there’s one thing incorrect with the GPU-to-PSU connection.

In case any of the voltage and sense wires of the 12VHPWR PSU cable get broken, it could malfunction. That’s the explanation solely the GPU is shutting off immediately somewhat than the complete PC. So, you’ll must make use of one other PCIe cable.

However, if the cable works effective, there’s most likely an problem with the motherboard’s GPU slot. Most trendy boards are outfitted with further ones. So, make the most of a free one.

inspect pcie slot or use the one thats available
Check for bodily harm on PCIe slots and use one which’s empty

Before doing so, be certain that it helps the variety of lanes. Some motherboards can have an x16 slot however run on x8 mode. A fast configuration on BIOS ought to repair this.

Inspect Power Supply For Faults

A few years back, my PCIe cable had melted contained in the RTX 3080’s socket. Even after intense troubleshooting and cleansing, nothing labored. The solely resolution was to change the PSU and GPU.

I’ve realized my lesson and I’m by no means going to pair a low-tier PSU with my high-end system once more!

When that occurred, my GPU turned off immediately however I may nonetheless hear my recreation audio. If you’re additionally affected by an identical symptom, a foul PSU can definitely be the perpetrator.

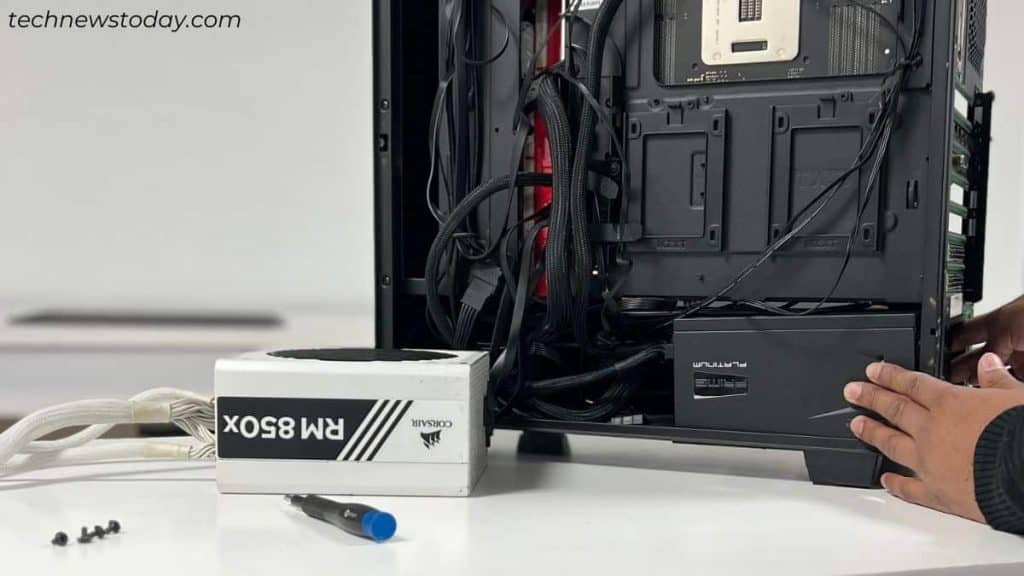

upgrading psu
Replacing a defective PSU

Do you’ve got a spare outdated energy provide at your own home? Use it for a couple of hours and this helps rule out whether or not the first one might be failing. You can go for Deependra’s information to study more methods of testing a PSU.

Also, notice that almost all low-tier PSUs aren’t optimized for dealing with fast transitory energy spikes in 30-series graphics playing cards. That may very effectively be the explanation your graphics card shut off.

If that’s what has occurred, the very best wager is to improve to a brand new energy provide from a reputed producer and ensure it’s of fine effectivity.

Resolve Driver Conflicts and BIOS Issues

Users who’ve just lately put in a brand new GPU ought to delete the earlier drivers. Otherwise, there’s a most probability that the outdated ones will battle with the brand new graphics drivers.

That mentioned, there’s no must panic as your graphics card isn’t broken simply because it’s turning off. You can use Display Driver Uninstaller (DDU) to do the needful and ensure to reinstall the suitable drivers.

uninstalling graphics drivers using ddu
Using DDU to uninstall show drivers

You’ll discover the related drivers on the GPU (NVIDIA/AMD) in addition to video card (ASUS/EVGA/MSI) producers’ official web sites. Then, it’s possible you’ll observe our devoted information on updating the graphics drivers.

Besides, I extremely advocate updating different motherboard drivers as effectively. These primarily embrace the chipset and BIOS

Before doing so, attempt clearing CMOS and loading the optimized defaults to see if this fixes the problem.

m-flash section in msi bios to update bios
M-Flash Section in MSI BIOS

Upgrading your motherboard’s firmware to the newest model fixes any form of instability with the graphics card. Our staff has already ready particular person guides on the preferred manufacturers that ought to make the method a breeze:

Caution: A failed BIOS/VBIOS update can render the element ineffective. Always place the PC beneath a backup energy earlier than initiating the method.

If updating motherboard BIOS didn’t assist, you may even update your GPU’s VBIOS. Here are the summarized steps:

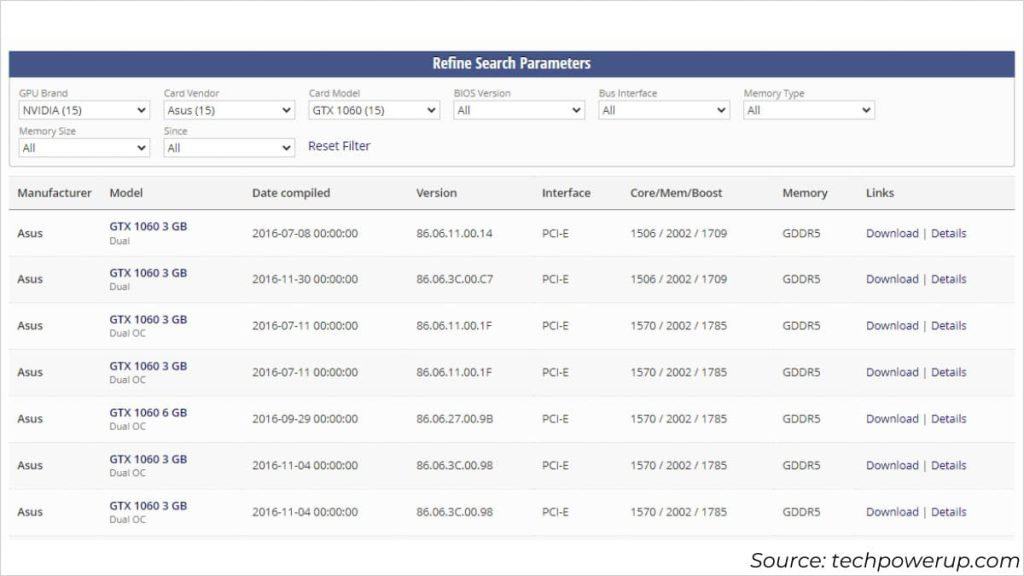

downloading vbios version
Downloading VBIOS for GTX 1060
  • Unlike the motherboard’s firmware, VBIOS drivers are fairly arduous to search out. You’ll must look them up on some dependable web sites. I like to recommend Tech Power Up as they’ve listed the newest ones for many fashions.
  • Depending on what GPU you’ve got, discover and obtain the zip file.
  • Extract and launch the ‘update’ file.
  • Once you’re within the command-line interface, go forward with on-screen directions to begin the VBIOS update.
  • After the update is full, reboot your PC and verify if the issue persists.

Final Troubleshooting Before RMA

For customers whose PC doesn’t boot to BIOS after the GPU crashes, try to be accompanied by some type of beep code and LED indication.

inspect gpu led
Inspect GPU LED to establish problem

Take a peek at your graphics card’s LED to establish if there’s a light-weight blinking. A pink or flashing white mild often signifies that the GPU isn’t receiving energy

The precise coloration can fluctuate however the gist right here is that there’s an influence connection problem. So, identical to the sooner resolution, reconnecting the PCIe cable or using one other one ought to assist clear up this.

You may even meet with a pink mild on the VGA indicator in your motherboard. This often signifies a connectivity drawback. Reinstalling your graphics card ought to often make it work.

vga light on motherboard
VGA mild on motherboard signifies points with the graphics card

While software program problem is a uncommon state of affairs, you would possibly wish to take a remaining inspection on a few of the power-related settings. In explicit, AMD customers can restore the Wattman settings to default or enhance the facility restrict.

Also, you may verify the occasion logs on Windows to establish and type out any malfunctions together with your OS.

Sometimes, points also can lie with different elements (particularly CPU and RAM).  So, filter each potential issue earlier than sending your graphics card, PSU, or motherboard for alternate or restore.
