What Is WPS Button? Where Is It On My Router

Wi-Fi Protected Setup, more generally often called WPS, is a wi-fi safety setup protocol. This commonplace was launched to permit straightforward setup of a house Wi-Fi network, even by individuals who aren’t tech-savvy.

Using WPS, you may join gadgets (computer systems, telephones, printers, cameras, and so forth.) to your network by merely urgent a button in your entry level (router) and station (device).

The WPS Button is a button you could press in your router and device to hook up with the Wi-Fi with out coming into the password.

Not all routers sport a WPS button, however those who do often have it on the aspect panel together with reset and different buttons. In addition to the bodily button, some routers and gadgets additionally assist a digital WPS button accessed through settings.

We’ve mentioned this in additional element, together with how to make use of WPS, whether or not it’s secure, and different associated queries within the article beneath.

Where Is The WPS Button on My Router

The WPS Button may be positioned on the router’s entrance, back, or aspect panel, relying on the model and mannequin. It could also be denoted as Push Button Configuration, or PBC, Wi-Fi Simple Config, Push to Connect, Quick Secure Setup (QSS), or any of the icons proven beneath.

When you press the WPS button in your router and device, they seek for a appropriate device and network, respectively, and sometimes pair up inside 2 minutes. The network credentials (SSID, safety key) are robotically configured, so it’s fairly handy.

Is It Safe To Use The WPS Button? Should WPS Be ON or OFF?

Safety isn’t the WPS button’s sturdy swimsuit. If your router is definitely accessible, an unauthorized individual might press the button and acquire entry to your network with out your information.

While on the subject of safety, it’s vital to say that along with the WPS Button, it’s also possible to use an 8-digit WPS Pin to hook up with a network. This PIN is printed on the back of your router, so as soon as once more, it’s vital to put the router in a safe location.

Another problem with that is that the PIN is split into 2 halves of 4 digits, so there are solely 10000 potential combos for the primary part, and 1000 for the second. Basically, it may be simply brute-forced.

This vulnerability was first reported in 2011 and has been exploited many instances since, which is why it’s now beneficial to flip off the WPS PIN characteristic.

As for the WPS Button and the WPS characteristic as an entire, you need to use them in the event that they’re truly needed, but it surely’s typically higher to disable WPS.

How to Connect to Wi-Fi using the WPS Button?

Using the WPS Button to hook up with the Wi-Fi could be very easy. Here are the steps to take action:

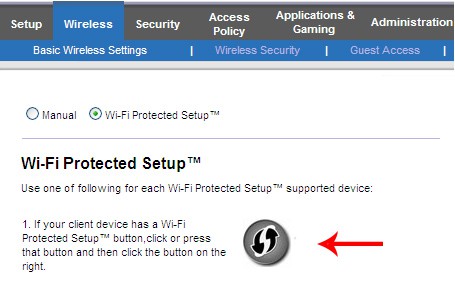

1. Press the bodily WPS button in your router. On some routers, it’s also possible to entry the router setup web page and configure the digital WPS button from there.

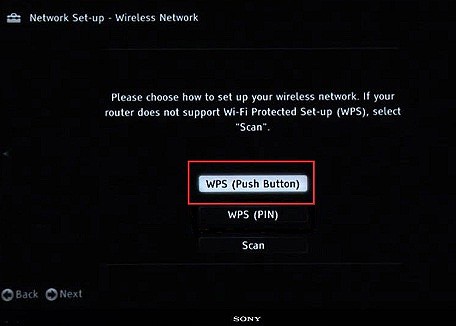

2. Press the WPS Button on the shopper device. Once once more, this could be a bodily button or a digital one accessed through the settings relying on the device. We advocate referring to your device handbook for additional particulars on this.

3. The device ought to connect with the Wi-Fi inside 2 minutes.

Troubleshoot WPS Connection Issues

Here are some issues to think about should you’re having issue connecting to the Wi-Fi using WPS:

• Make positive you press the button on each the router and device inside 2 minutes of one another, as they are going to cease trying to find WPS broadcasts after this era. You’ll have to press the buttons once more to restart the method.
• Ensure that WPS just isn’t disabled through router settings. We’ve mentioned this intimately within the part beneath.
• Restart the router and device.
• Move the device and router nearer to one another if potential.
• Finally, make it possible for the router and device truly assist WPS.

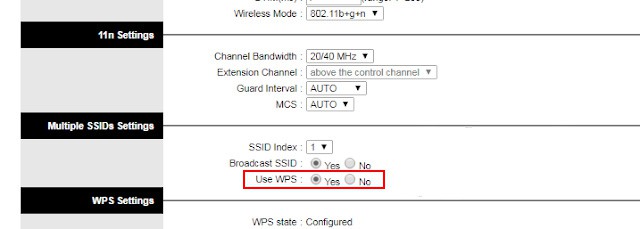

How to Disable WPS?

Not all routers assist disabling WPS, however on those who do, you may comply with the steps listed beneath to do the identical:

1. Launch any internet browser and entry the router settings web page.

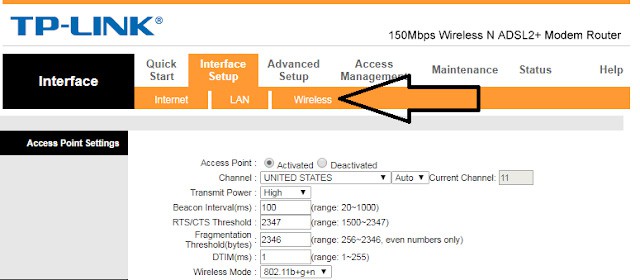

2. Navigate to the Wi-Fi or Wireless Settings or comparable part and search for Wi-Fi Protected Setup (WPS).

3. Select the Turn Off or comparable choice and press OK to avoid wasting the modifications.
