How To Reset MSI BIOS

Whether your system fails in addition into the OS or crashes continually resulting from incorrect BIOS settings, resetting the BIOS ought to work. When you reset the BIOS, it reverts all of your BIOS configurations to their default state—that means all overclocked settings will revert, and the BIOS password will probably be reset.

There are a few methods to reset the BIOS on the MSI motherboard. But relying in your state of affairs, you would possibly need to observe a selected methodology.

Using BIOS Settings

Let’s begin with the simplest methodology of all of them, using BIOS settings. You can reset all of your BIOS settings inside the BIOS itself. To do that, you first have to entry the BIOS. If you can not entry the BIOS in any respect, you’ll be able to skip this methodology and bounce to the following one.

1. Enter the BIOS by repeatedly urgent the BIOS key.

Note: The BIOS key for MSI motherboards & laptops is the Delete Key. But if the delete key doesn’t work, the BIOS key may very well be any of the operate keys. Refer to the Laptop’s person handbook in addition into BIOS.

2. Make certain you might be in Advanced Mode. Press F7 to toggle between Advanced and EZ modes.
3. Go to Settings.
4. Click on Save & Exit.

5. Here, click on on Restore Defaults.

6. Select Yes when it asks for affirmation.

7. Click on Save Changes and Reboot.

8. The system ought to now Boot with the default BIOS configuration.

Using Clear CMOS Button

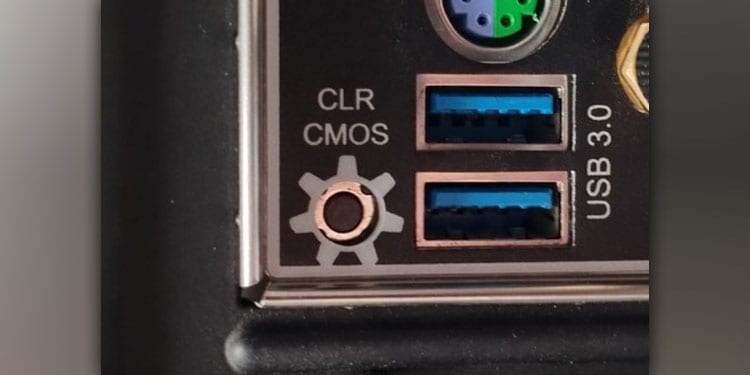

Some MSI motherboards, particularly newer ones, have a Clear CMOS button on the motherboard’s I/O panel. Turn off the PC and press the CMOS reset button to revert all of your BIOS settings. Depending on the motherboard, it may also have a swap close to the CMOS itself.

You can check with the motherboard’s person handbook to examine if it has a reset CMOS swap.

Clear CMOS Using Jumper

CMOS battery provides energy to the CMOS (Complementary Metal Oxide Semiconductor) chip. The CMOS chip holds all of your BIOS settings so long as you provide the chip with energy. Your motherboard can even have jumper pins that help you reset knowledge within the CMOS chip. Simply short-circuiting these pins will reset your BIOS.

Note: When you quick circuit, you must have the appropriate pins chosen. Short-circuiting the fallacious pins might even brick the motherboard. So ensure you check with your motherboard’s person handbook to determine the appropriate pins.

1. Turn off the PC.
2. Search your motherboard for pins with writings like CLR, CLEAR, CLEAR CMOS, CLEARCMOS1, JBAT1, BIOS CONFIG, and many others.


Note: You can check with the motherboard’s person handbook for those who can not discover the jumper pins. If you aren’t assured in regards to the Pin, go away it right here and transfer into the following methodology.

3. Depending on the motherboard, it might have two or three jumper pins. If your motherboard has two jumper pins, join the 2 pins using a flat screwdriver for 5 to 10 seconds.

4. Remove the screwdriver. All your BIOS configurations will probably be reset.
5. If your motherboard has three pins, say pins 1, 2, and three, it is going to have a plastic materials connecting two pins, 2 and three. Remove it and insert it within the different two pins, 1 and a couple of.

6. Wait a 5 to 10 seconds and revert the jumper to its earlier state, i.e., pins 2 and three.
7. Turn on the PC and examine if the BIOS configuration is in its default state.

Reseat CMOS Battery

You may reseat the CMOS battery to reset the BIOS. BIOS reset by resetting the CMOS is particularly helpful for those who can not even boot into the motherboard’s BIOS and have problem figuring out the appropriate pins for shorting.

Note: Make certain you floor your self earlier than dealing with inside PC parts.

1. Turn off the PC and unplug the PC from wall outlet.

2. Press the facility button for 30 seconds to at least one minute to discharge capacitors on the motherboard.

3. Remove any screws that connect the aspect panel to the PC case.

4. Once all of the screws are out, take the aspect panel out. You will now have entry to the motherboard.
5. Now, find the CMOS battery on the motherboard. You may examine for writings like CMOS on the motherboard.

6. Press the metallic lock that’s holding the CMOS battery on the slot. The CMOS battery ought to pop proper out.

7. If you might be using a Mini-ITX MSI motherboard, the CMOS battery is linked to the motherboard by way of a cable. In such a case, take away this cable.
8. Wait two to 3 minutes and insert the CMOS battery back into its slot. Make certain that the + signal is dealing with you.
9. Screw the aspect panel to the CPU case and activate the PC.

10. Boot into BIOS and examine the BIOS settings.

For MSI laptops, resetting the BIOS may be fairly sophisticated, as you must take away the complete back panel to entry the motherboard. And even so, finding the CMOS battery may very well be troublesome.

Note: Before disassembling the laptop computer, examine if the laptop computer has a guaranty. Usually simply opening the back plate doesn’t void the guarantee however it’s best that you simply examine guarantee particulars earlier than you open up the laptop computer.

1. If you could have a detachable laptop computer battery, take it out of the laptop computer first.

2. Unscrew all of the screws on the laptop computer’s back plate and put it on a metallic tray.

3. Insert a pry device between the laptop computer and its back plate.

4. Slightly flip the pry device at an angle. You ought to hear a click on.
5. Repeat this course of throughout the laptop computer to unclip the complete backplate.

6. If you see the battery contained in the laptop computer, take away the battery cable that connects to the motherboard. You can skip this step when you have a detachable battery.

7. Now, seek for the CMOS battery.

8. Depending on the MSI laptop computer mannequin, the CMOS battery may have a devoted slot or a cable connecting the battery to the motherboard.
9. Remove the CMOS battery from the motherboard.
10. Wait a couple of minutes and insert the CMOS battery back into the motherboard.
11. Connect the battery cable back to the motherboard.

Note: If you can not discover the CMOS battery, it may very well be positioned below the motherboard. You have to take away it to entry the CMOS battery.

12. Place the back panel back into the laptop computer, clip all the perimeters back in, and safe them using the screws that you simply beforehand eliminated.
13. Reconnect the laptop computer battery when you have a detachable one.
