How To Fix Printer Alignment (All Brands)

It is quite common for printers to generate misaligned or skewed texts over time. It usually occurs because of the mispositioning of the printhead. Sometimes, you would possibly even encounter printouts with overlapping texts or cut-off margins.

When you face such points in your printer, you’ll be able to repair the issue by merely using the printhead alignment device built-in into the printer driver or navigating by means of the upkeep choices on the printer’s LCD management.

Before you start, load some unused papers within the enter tray and ensure there’s sufficient ink on the printer.

Fix Printer Alignment On HP Printer

If you personal an HP printer, you’ll be able to principally use two strategies to repair printer alignment—the HP assistant device and the printer’s LCD display screen. Let’s test them out one after the other.

Using HP Assistant Tool

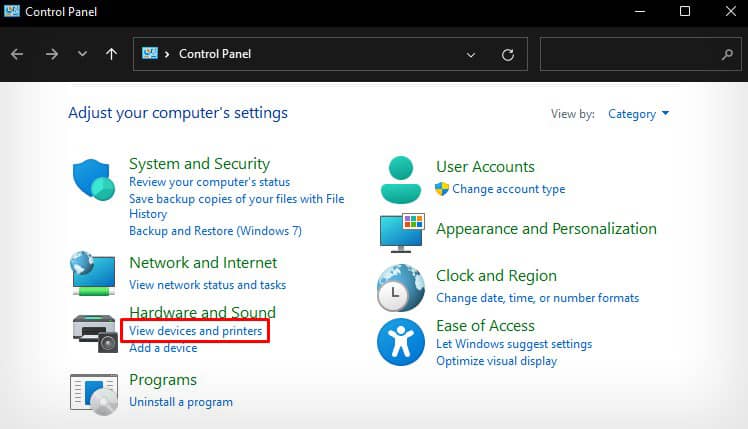

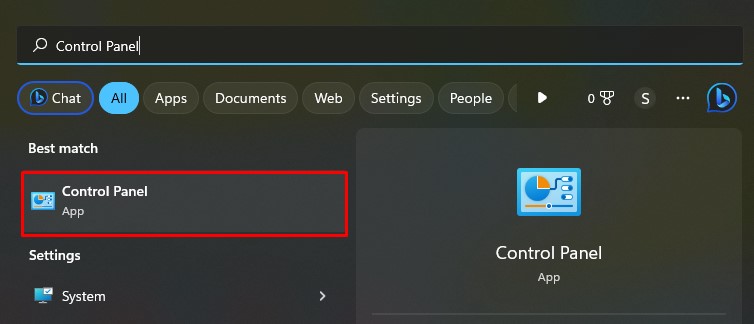

1. Open Control Panel.

2. Select the View units and printers menu.

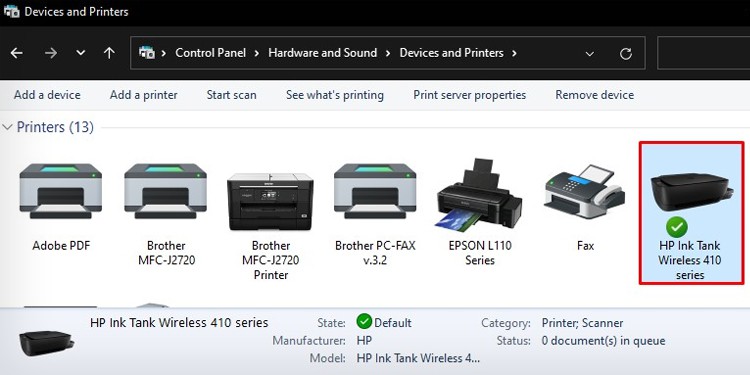

3. Double-click HP printer.

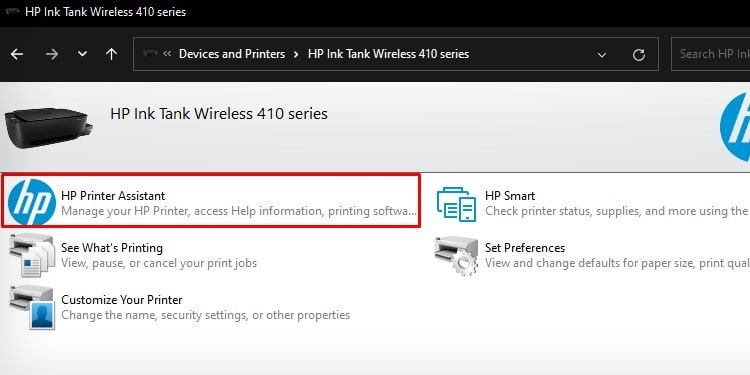

4. Open HP Printer Assistant.

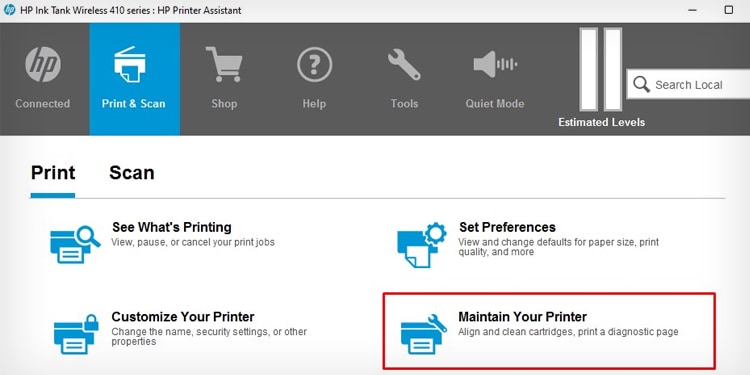

5. Tap Maintain Your Printer.

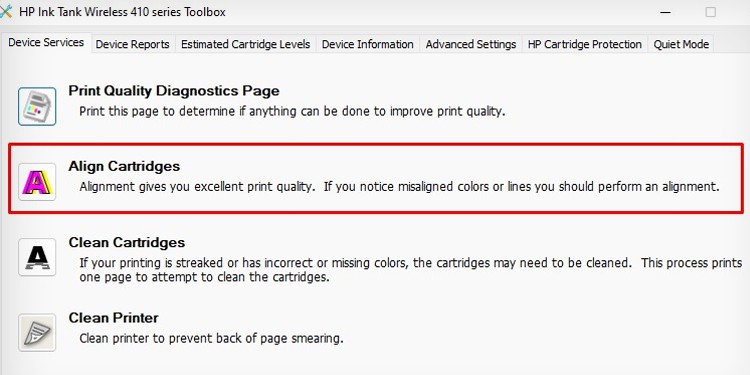

6. Select the Align Cartridges choice.

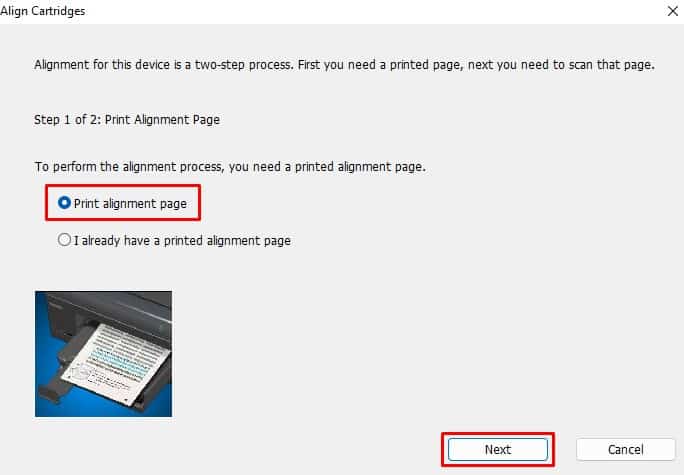

7. Choose Print alignment web page choice, then click on Next.

8. Alignment web page appears just like this.

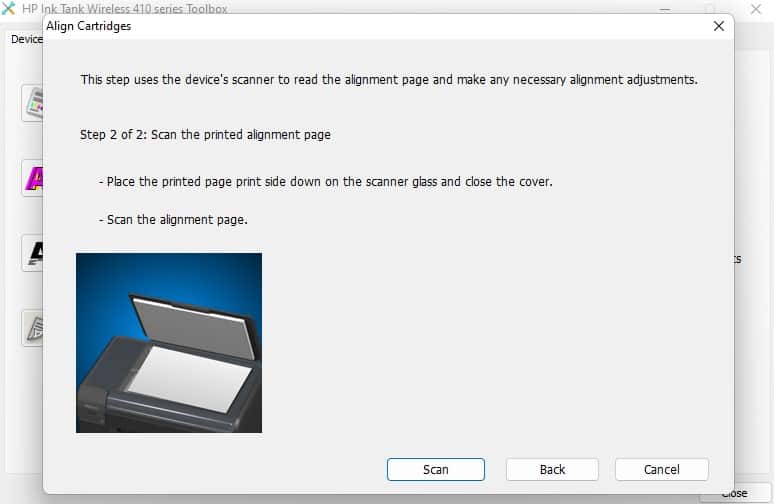

9. Now put the printed web page over the scanner mattress.
10. Click Scan.

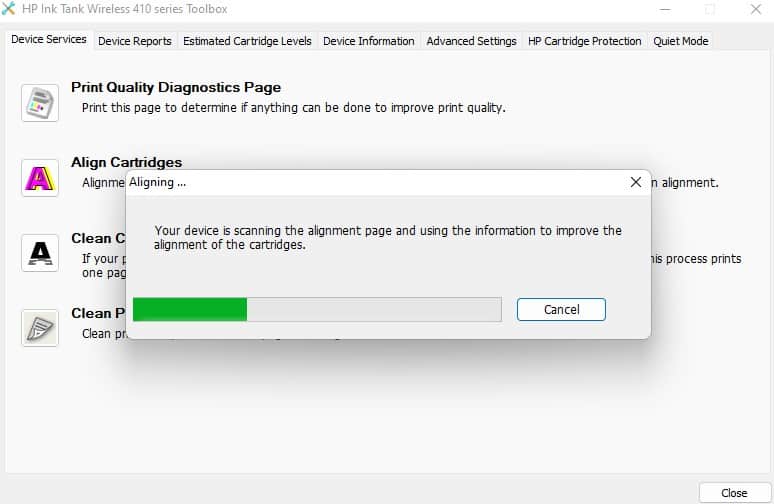

11. Now, your printer will do the needful to repair the alignment points.

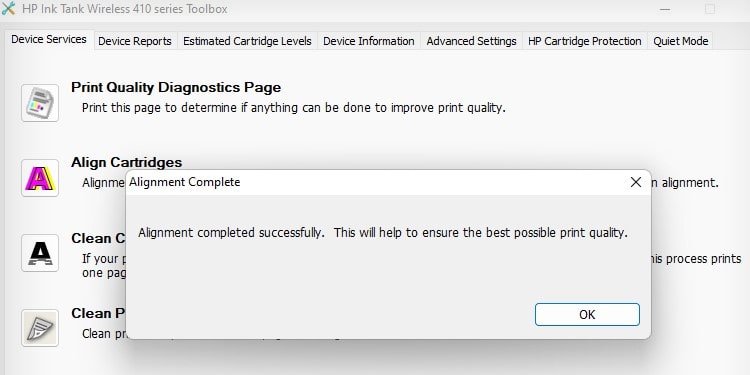

12. Once you see this display screen, it signifies the alignment is now full. Now, strive printing your doc.


Using Printer’s Screen

1. Touch the Settings icon on the house display screen of your printer.

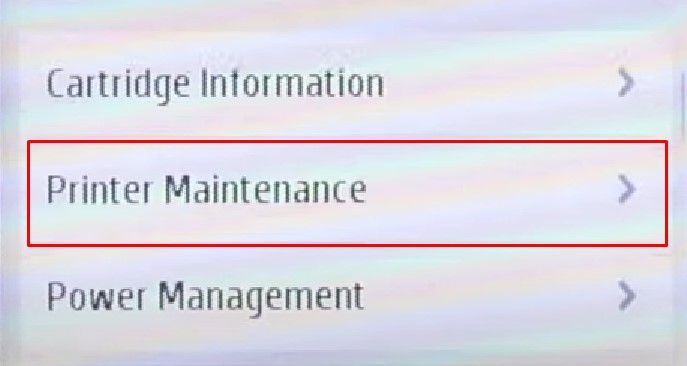

2. Tap Printer Maintenance.

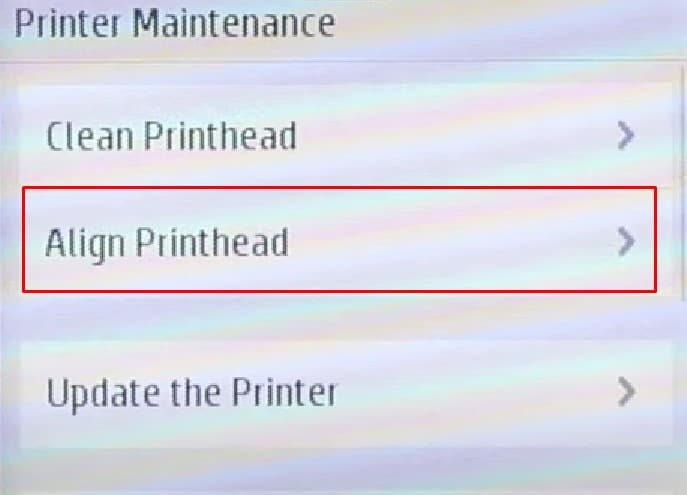

3. Go with the Align Printhead choice.

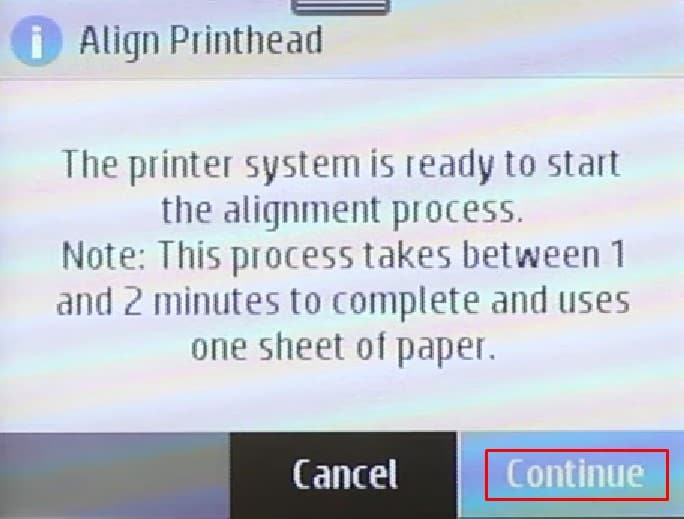

4. Select Continue. The printer will begin the alignment and notify you as soon as accomplished.


Fix Printer Alignment On Canon Printer

Depending upon the mannequin of your Canon printer, there are a number of methods to repair the printer alignment. In some fashions, you could merely use a mixture of some buttons to carry out the alignment. At the identical time, others might require you to make use of the printer driver or the LCD management panel.

Using Printer Driver

1. Open View units and printers from Control Panel.

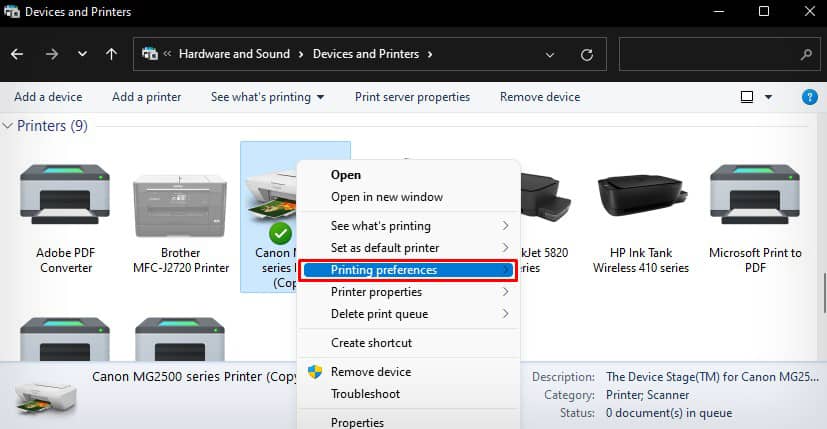

2. Right-click and open Printing preferences of Canon printer.

3. Jump to the Maintenance tab.

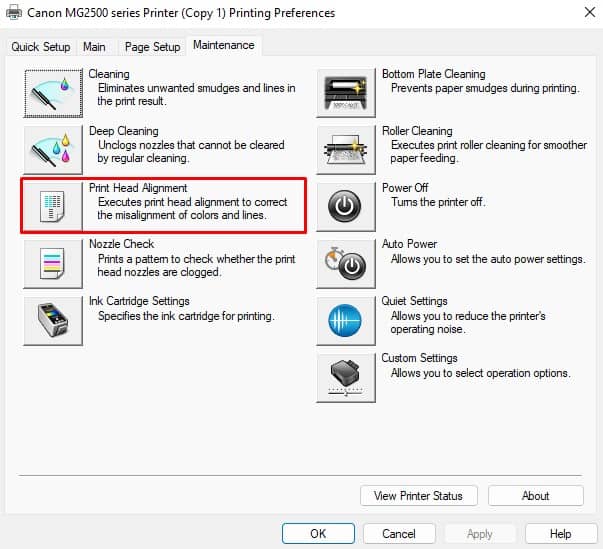

4. Tap Print Head Alignment.

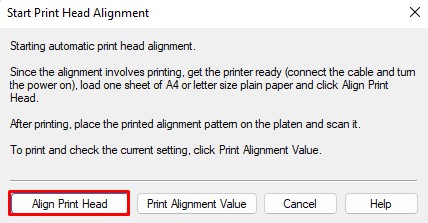

5. Click Align Printhead on the popup and observe the directions to finish the method.


Using Printer’s Screen

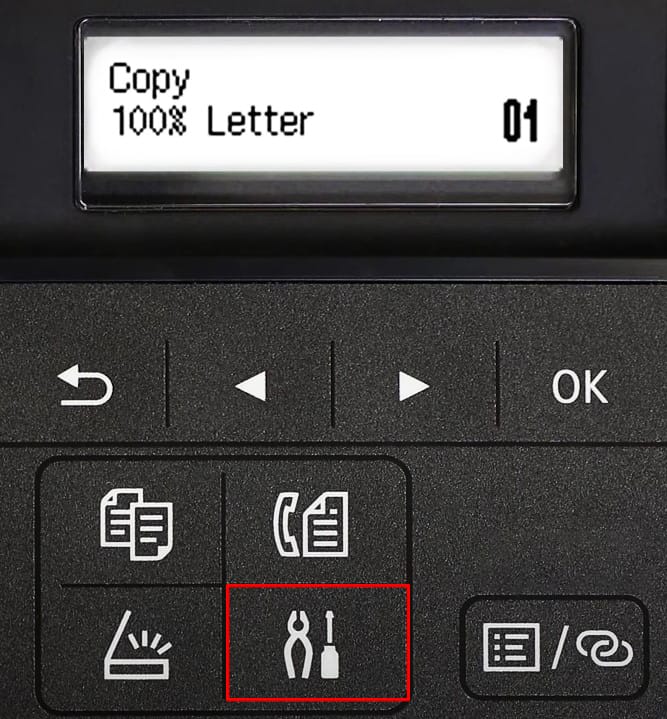

1. Push the Utility button on the button panel.

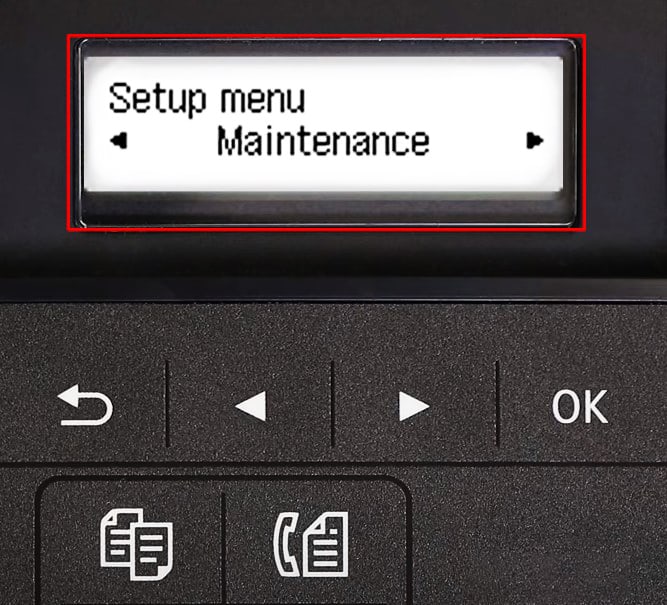

2. Use the Right Arrow button to go to Maintenance and hit OK.

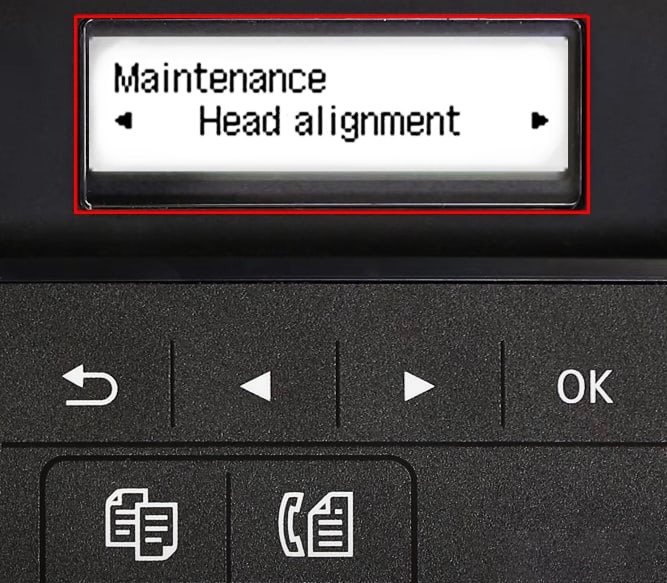

3. Again navigate to the precise to go to Head alignment and push the OK button.

4. You will get an alignment sheet out of your printer.
5. Place the sheet over the scanner mattress.

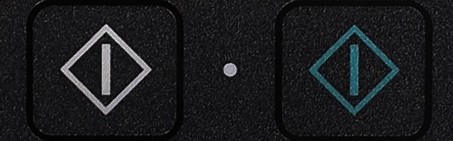

6. Now press the Color Copy or Black Copy button.

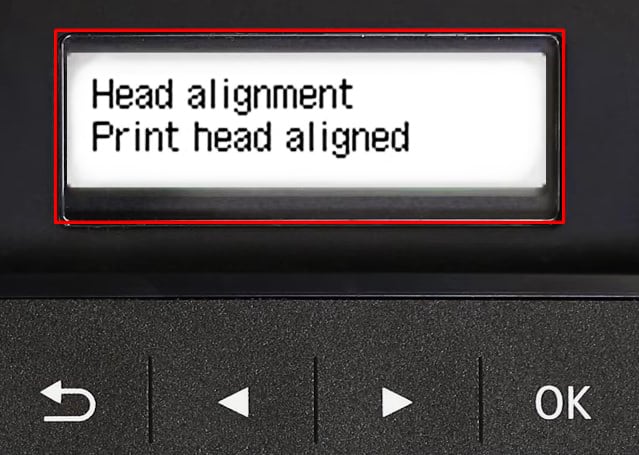

7. You will see the “Print head aligned” message as soon as alignment is finished.


Using Printer’s Button

1. Press and keep urgent the Stop button on the printer.

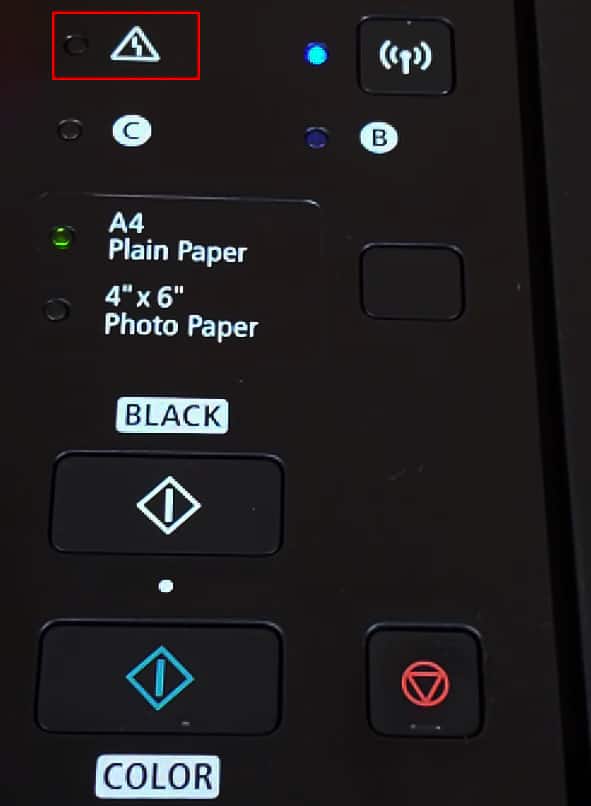

2. Release it as quickly because the Alarm indicator blinks 4 instances.

3. Your printer will print the alignment web page.
4. Open the scanner mattress and lay down the web page there.

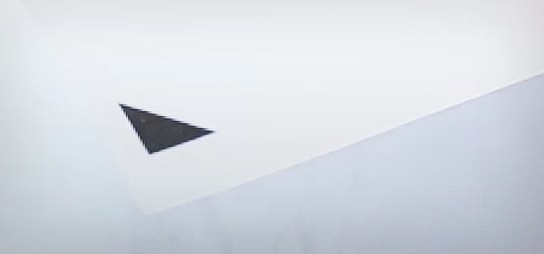

5. While laying the web page, ensure the triangle signal on the printed aspect faces downwards and coincides with the highest left of the scanner glass.

6. Close the scanner lid.

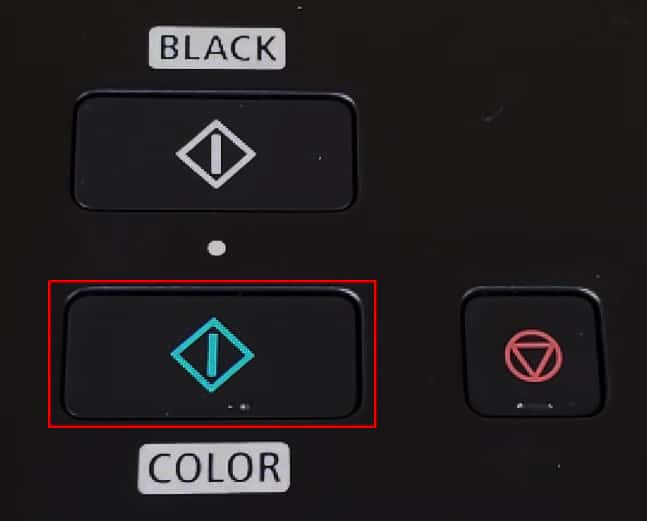

7. Push the Color Copy button. The alignment course of will start.

8. Remove the paper from the scanner mattress as soon as the printer stops producing scanning noises.

Fix Printer Alignment On Epson Printer

Most of the Epson printers come with out a display screen. So, using the printer driver could be a very good choice to repair the alignment. However, you can too use the display screen in case your printer has one.

Using Printer Driver

1. First, open Control Panel after which open View units and printers.

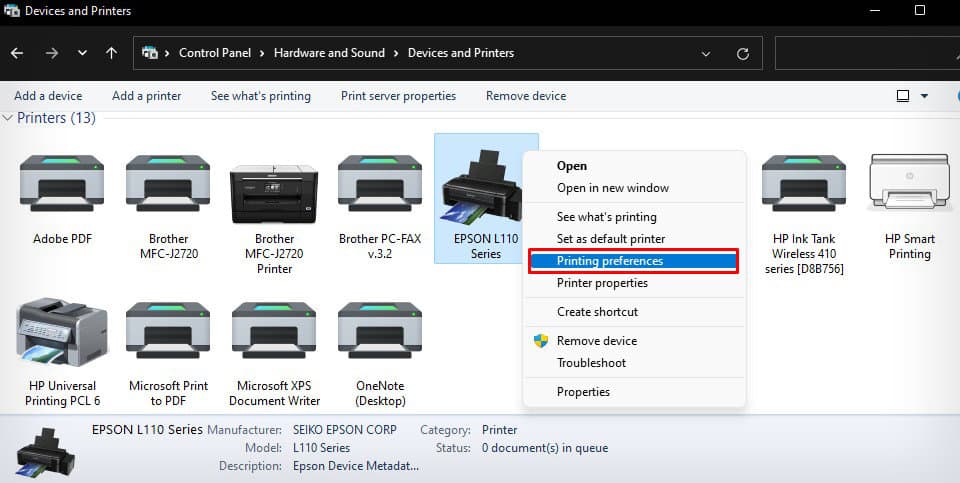

2. Right-click and open Printing preferences of the Epson printer.

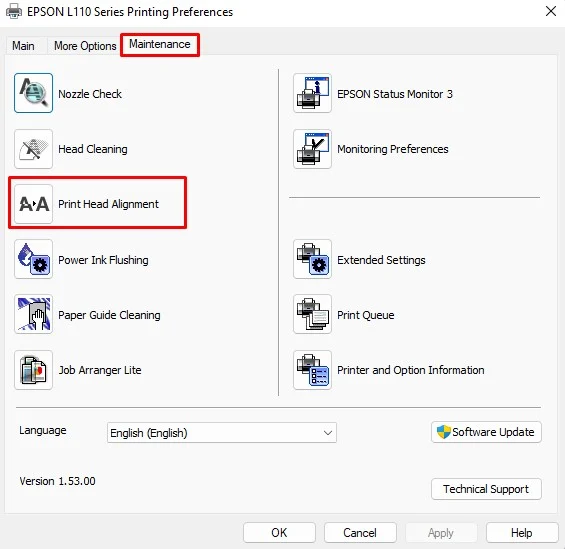

3. Go to Maintenance.
4. Tap this feature: Print Head Alignment.
5. Click Next within the popup window.

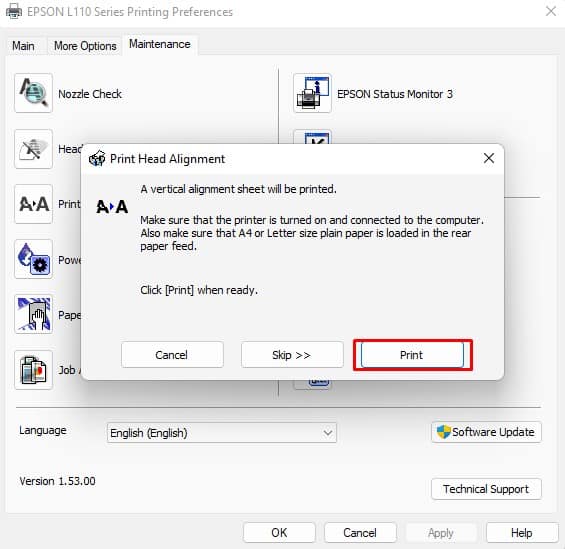

6. Tap Print and observe the steps on the display screen to perform the top alignment.


Using Printer’s Screen

1. Push the Home button in your printer to load the house display screen.
2. Use the arrow keys to navigate to Setup and press OK.
3. Navigate to the Maintenance menu.

4. Go to Head Alignment and push the OK button.
5. Push the Start button. The printer will now begin printing an alignment web page.

6. Follow the directions on the printer’s display screen to finish the method.


Fix Printer Alignment On Brother Printer

Since many of the Brother printers include a display screen, you’ll be able to simply navigate by means of it to align the printheads. If not, you should utilize a mixture of some buttons to perform the job.

Using Printer’s Screen

1. Open Settings.

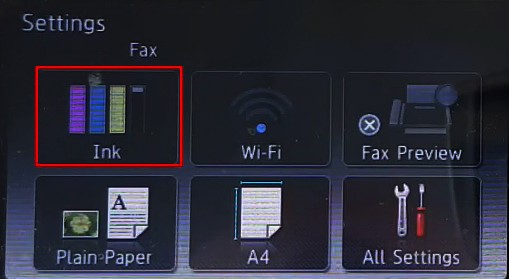

2. Tap the Ink button.

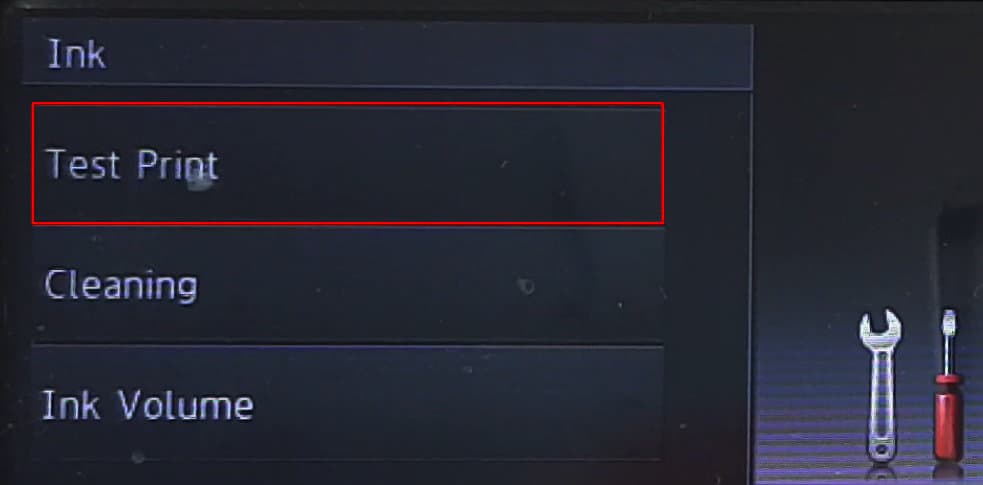

3. Click Test Print.

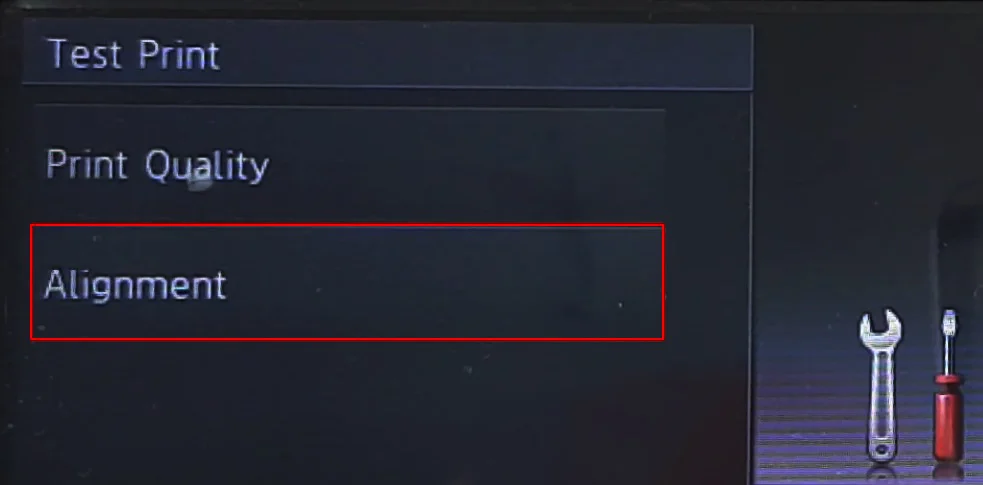

4. Select Alignment.

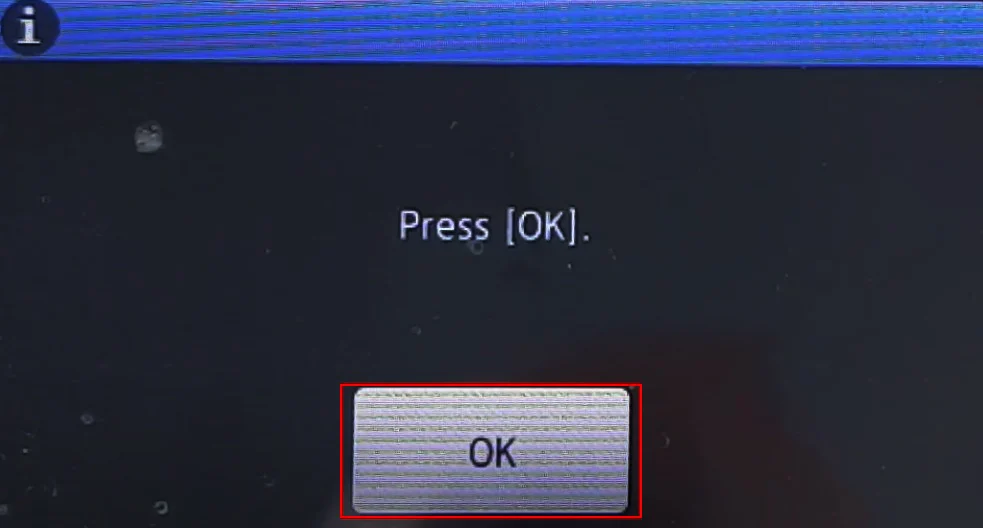

5. Press OK.

Using Printer’s Button

1. Power off your Brother printer.

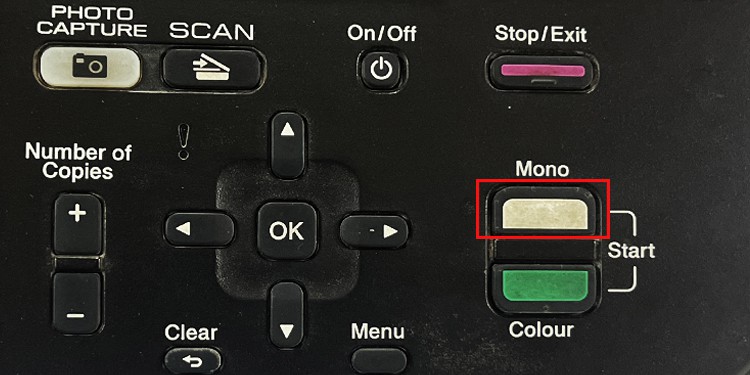

2. Push and keep pushing the Mono Copy button on the printer.
3. While you’re nonetheless urgent the button, energy on the printer—don’t launch the Mono Copy button but.

4. Release the button as soon as the printer ejects an alignment web page.
5. Place the web page within the scanner mattress so the mark lies on the decrease proper fringe of the glass.

6. Press the Mono or Color Copy button. The energy indicator retains blinking when the printer is aligning itself.
7. Once the indicator stops blinking, test in case you are nonetheless dealing with alignment points.
